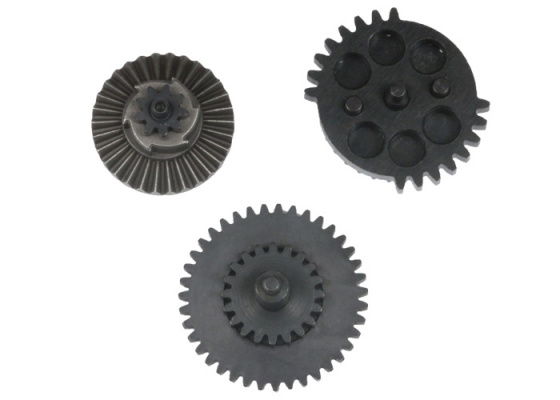

Siegetek Ver. 2/3 Cyclone Balanced 20.15 Ratio Gear Set

[08117 / GS-B-C /SC GS B C]
$140.00
Write Review ❤ Add to Wishlist
OUT OF STOCK

Siegetek gears are CNC Machined out of Chromium Molybdenum steel and are the strongest gears available for TM compatible AEGS. Each gear is precisely calculated and accurately produced which provides maximum efficiency and durability over traditionally produced gears. Siegetek gears are incredibly thick to provide higher bearing surface and improves structural durability. Siegetek gears are used in some of the most hardcore builds in airsoft and have been come to known for their quality and durability, install these gears in your build and they will not disappoint.

Siegetek's Cyclone Gear set is an extremely advanced set up and should only be attempted by an expert technician. The Cyclone gear features a set of teeth of either side of the sector gear which allows two shots per gear cycle, essentially doubling your rate of fire. Using a half-cycle cut-off system allows retention of semi-automatic fire which is usually very tricky to pull off with a short stroke style system. The sector clip on this gear system is shaped in such a way to delay the release of the tappet plate to avoid any feeding malfunctions. Siegetek recommends that this setup should only be used with a 363mm inner barrel or shorter due to the reduced air compression that the short stroke system produces.

Specifications:
Manufacturer: Siegetek Concepts
Material: Chromium Molybdenum steel
Ratio: Balanced 20.15
Gearbox compatibility: Version 2 and 3

Features:
CNC machined
Short stroking system
Enlarged sector gear release tooth
Shape-optimized power cut-off cam
Enlarged tappet cam
Shape-optimized anti-reversal gear

Please Note:

  • Professional installation is recommended. Improper use or installation of upgrade parts are 99% of the time the cause of failures of these items.

Specifications
Manufacturer: Siegetek Concepts
Color: Black
Material: Chromium Molybdenum Steel
Package Includes: One (1) Gear Set

No reviews | Write a Review

Fit
Can this fit in eny v2 gearbox

1506 days ago
Collin M
0
0

(I have this same question)
Staff Answer:
Yes, excluding those that use proprietary designs.

1504 days ago
0
0
1 answers
1 asked

barrel lenth
If this gear set has the same ratio as the balanced gear set why can it only handle barrels under 363mm? I would like to get a build done for hight rof and fps, and to me this set seems to be high speed yet still have torque, according to the ratio and name

1783 days ago
kari-lynn k
0
0

(I have this same question)
Staff Answer:
Siegetek recommends that this setup should only be used with a 363mm inner barrel or shorter due to the reduced air compression that the short stroke system produces. Since the piston only goes halfway, you will only get half the compression. If you want to use a long barrel, such as a 509mm, you need full compression to make sure the bb is propelled all the way out of the barrel.

1783 days ago
0
0
1 answers
1 asked

Semi? 0 answers
1 asked

gear box and spring
Would this fit any v2 gear box ? Also what is the max spring?

1837 days ago
Jason E
0
0

(I have this same question)
Staff Answer:
This should fit both V2 an V3 and take almost any spring.

1835 days ago
0
0
1 answers
1 asked

Search Tags: ROF Upgrade Motor Version 2 Version 3 Internal Upgrade AEG Gearbox Precision Tuning Performance Chromium Molybdenum Heat Treated Steel
