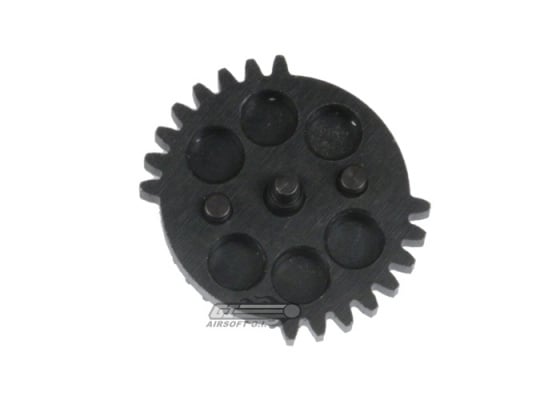

Siegetek Cyclone Dual Sector Gear 8T

[SI04][08225 / G1T3R1 / SC G1 T3R1]
$65.00 $58.50
Write Review ❤ Add to Wishlist
OUT OF STOCK

Siegetek gears are CNC Machined out of Chromium Molybdenum steel and are the strongest gears available for TM compatible AEGS. Each gear is precisely calculated and accurately produced which provides maximum efficiency and durability over traditionally produced gears. Siegetek gears are incredibly thick to provide higher bearing surface and improves structural durability. Siegetek gears are used in some of the most hardcore builds in airsoft and have been come to known for their quality and durability, install these gears in your build and they will not disappoint.

Siegetek's Cyclone Gear is an extremely advanced set up and should only be attempted by an expert technician. The Cyclone gear features a set of teeth of either side of the sector gear which allows two shots per gear cycle, essentially doubling your rate of fire. Using a half-cycle cut-off system allows retention of semi-automatic fire which is usually very tricky to pull off with a short stroke style system. The sector clip on this gear system is shaped in such a way to delay the release of the tappet plate to avoid any feeding malfunctions. Siegetek recommends that this setup should only be used with a 363mm inner barrel or shorter due to the reduced air compression that the short stroke system produces.

This product should be compatible with most 18:1 and 16:1 gear ratios. This product is also compatible with Siegetek 20:15 and 14:09 gearsets.

Specifications:
Manufacturer: Siegetek Concepts
Material: Chromium Molybdenum steel
Gearbox compatibility: Version 2 and 3

Features:
CNC machined
Short stroking system
Enlarged sector gear release tooth
Shape-optimized power cut-off cam
Enlarged tappet cam
Shape-optimized anti-reversal gear

Please Note:

  • Professional installation is recommended. Improper use or installation of upgrade parts are 99% of the time the cause of failures of these items.

Specifications
Manufacturer: Siegetek Concepts
Color: Black
Material: Chromium Molybdenum Steel
Package Includes: One (1) Sector Gear

No reviews | Write a Review

how much for you guys to install
thanks

1548 days ago
rj d
0
0

(I have this same question)
Staff Answer:
Standard labor fee is $45 plus the cost of parts. For this. You will need an upgraded spring tension, piston, reshim of gears, etc.

1489 days ago
0
0
1 answers
1 asked

v2
Will will it work on a jg costI'm v2 gearbox

1581 days ago
patrick c
0
0

(I have this same question)
Staff Answer:
It is designed for most gearboxes, however, professional installation is recommended

1580 days ago
0
0
1 answers
1 asked

Will this gear decrease velocity
Qill this gear decrease you velocity since it doesnt seem like it would cock the whole way?

1876 days ago
Paul W
0
0

(I have this same question)
Staff Answer:
Yes, you will lose FPS

1876 days ago
0
0
1 answers
1 asked

What ratio is this gear?
14:1?

2023 days ago
Randall K
0
0

(I have this same question)
Staff Answer:
The ratio of this specific gear is 31:2, but it will work with 18:1 & 16:1. This is also designed to work with the siegetek 20:15 and 14:09.

2022 days ago
0
0
1 answers
1 asked
