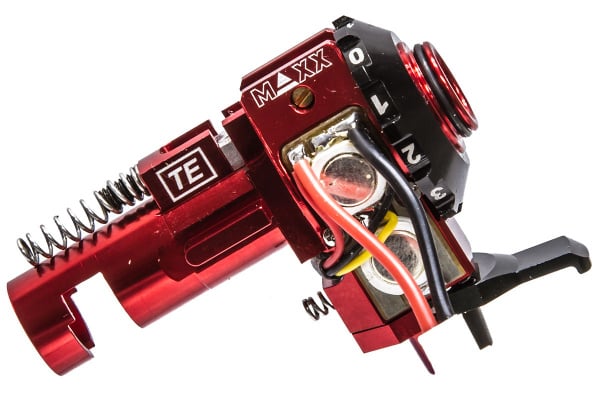

Maxx Model TE PRO CNC Aluminum Hop Up Chamber w/ LED

The Maxx Model CNC Aluminum Hopup Chamber TE Pro with Latching System & LED unit is specifically for M4/M16 series AEG Airsoft Rifles and is designed to work well in high rate of fire set ups, and to prevent dropping BBs after removing a magazine from the rifle. This Hop chamber is machined from a solid aircraft aluminum block with tight tolerances to provide better accuracy and consistency in an M4 build.
Adjusting the hop tension is made easy with the Dial Knob built-in for precise adjustments and specially re-engineered the Hopup Arms to work with R-hop, Flat-Hop and Standard-Hop precisely and consistently to keep the BBs shooting straight and accurate on every shot. A Brass Threaded Slot Pin is easily removable for adjustment and maintenance.

Maxx Model though ahead when engineering the chamber and allows it to accept wide range of Air Seal Nozzle's length from 20.50mm to 21.00mm, and fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs, and is further equipped with 3 O-rings, 3 Compression Springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tight at all times when adapted to any V2 gear boxes with 11mm or 12mm bore. Finally, this unit is specially designed with BB Latching System for automatically locking BBs into the Hopup Chamber to prevent dropping BBs after removing the magazine, the Latching System will be automatically opened fully for fast shooting after the magazine re-inserted. The Latching System can be also manually opened to release BBs from Hopup Chamber by hand.

Specifications:
Manufacturer: Maxx Model
Model: TE PRO CNC Aluminum Hop Up Chamber w/ LED

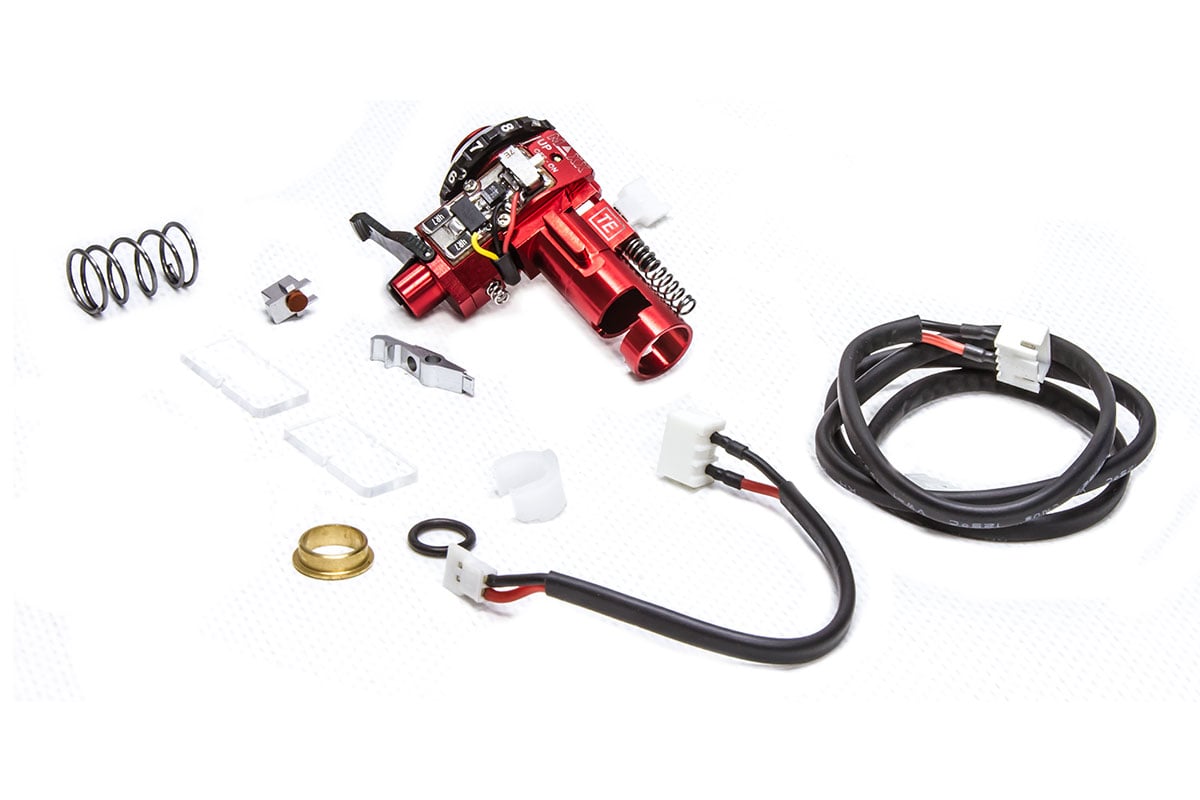

Package Includes: 1 x CNC Aluminum Hopup Chamber TE Pro with Latching System unit 1 x LED and Electronic Modules set 1 x CNC Aluminum Standard-Hop Arm 1 x CNC Aluminum R-Hop Arm 1 x Silicone Rubber Standard-Hop Nub Damper 1 x Silicone Rubber R-Hop Nub Damper 1 x CNC Aluminum 5mm length Precision R-Hop Nub 1 x CNC Aluminum 6mm length Precision R-Hop Nub 1 x CNC Brass Threaded Slot Pin 1 x CNC Delrin Locking C-Clip 1 x CNC Barrel Brass Spacer 1 x Steel Central Compression Spring
Warranty Length: 45 Days
Warranty Handler: Airsoft GI (Warranty Policy)

Features:

• Machined from a solid aircraft aluminum block with tight tolerances to provide better accuracy, consistency, and durability
• Designed for fast feeding BBs and prevent dropping BBs after removing magazine on M4/M16 series AEG Airsoft Rifles
• Designed with BB Latching System for automatically locking BBs into the Hopup Chamber to prevent dropping BBs after removing the magazine
• Automatically opened Latch fully for fast shooting after the magazine re-inserted
• Manually opened Latch to release BBs from Hopup Chamber by hand
• Dial Knob built-in for precise adjustments
• Specially re-engineered the Hopup Arms to work with R-hop, Flat-Hop and Standard-Hop precisely and consistently
• Removable Brass Threaded Slot Pin for adjustment and maintenance
• Accepts wide range of Air Seal Nozzle's length from 20.50mm to 21.00mm
• Fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs
• Equipped with 3 O-rings, 3 Compression Springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tight at all times
• Compatible to any V2 gear boxes with 11mm or 12mm bore
• Included LED and Electronic Modules to glow BBs in the dark. Operating Voltage from 7VDC - 20VDC (2-5 cells LiPo, 6-16 cells NiCad)

Please Note:

• Professional installation is recommended. Improper use or installation of upgrade parts are 99% of the time the cause of failures of these items.
• Please thoroughly inspect any parts for defects before attempting installation. Due to the high possibility of damage from improper installation, we will not warranty parts after attempting installation.
