JAG Arms Extreme Processor Unit w/ Wiring for AEG

[29100 / JAG FET CPU X]
Write Review ❤ Add to Wishlist
Orders over $149 qualify for free shipping
Free Shipping for orders over $149 No Coupon needed

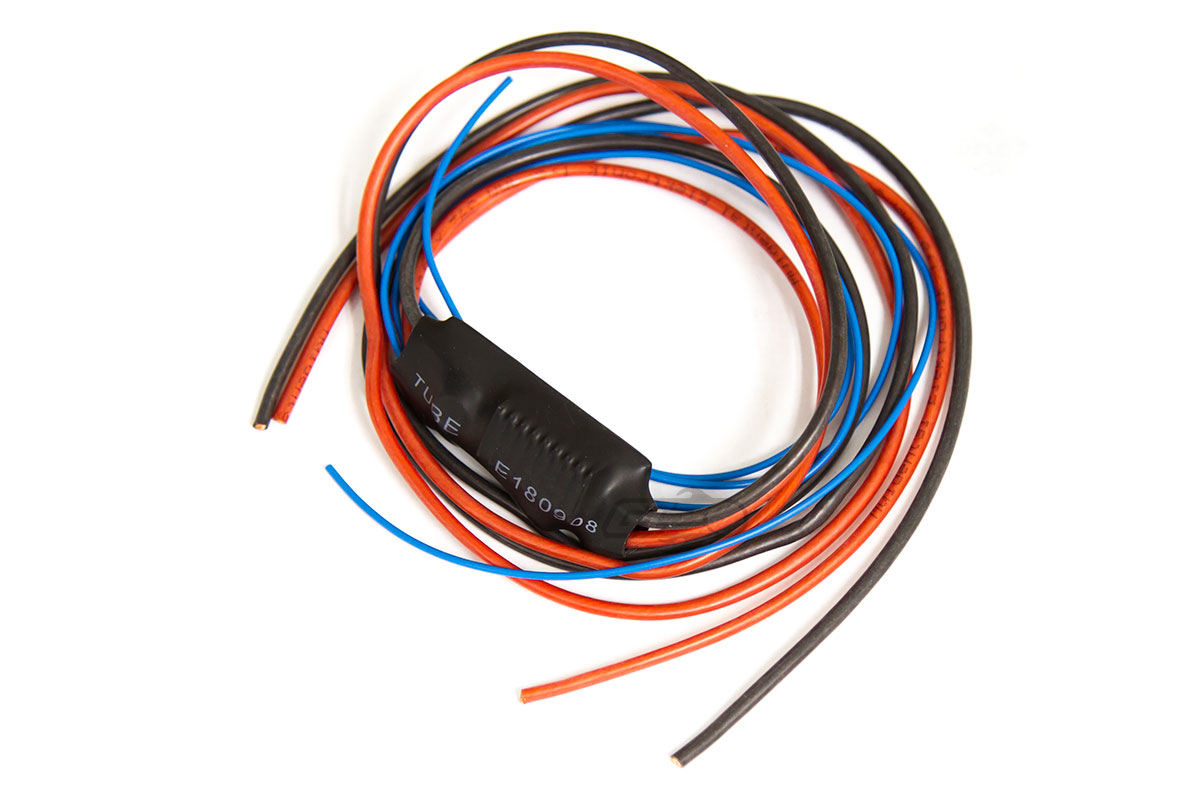

The JAG Arms Processor Unit is a professionally designed and manufactured mosfet with a plethora of features in the electronic processor, and wires on each side of the mosfet allow for use in a wide range of AEG styles. The wires are a high quality 1.5mm AWG16 power wires covered with silicon insulation with two AWG24 signal wires. The first mostfet feature is that it regulates current and voltage through the gun and extends battery life as well as prevent arcing across the trigger contacts during sustained single fire. Next on the list of features are 6 adjustable fire control settings, with programmable burst round count, as well as having a "pre-cocking" setting that stops the piston when compressed to provide instant trigger response on single shot firing. The FET also includes Active Braking, which allows the motor to stop at one full cycle of the gearbox without over spin occurring. Settings are changed via trigger pulls, and the system has a memory so settings are saved when a battery is disconnected.

This mosfet is designed to handle up to 14v NiMH batteries, and up to high discharge 14.8v lithium polymer batteries as well as 13.2 Lithium Iron batteries, as well as an internal build with an M170 Spring, and has no cyclic rate of fire limit.

Manufacturer: JAG Arms
Model: Extreme extreme processor unit
Color: Black
Package Includes: Mosfet unit


  • Motor Active Braking
  • Current and Voltage regulation to AEG
  • Modular Fire Control Settings
  • Piston Pre-Cocking

Manufacturer: Jag Arms
No reviews | Write a Review
Search Tags: FCU Mosfet Multiple Functions breaking
