Specifications:

• Brand: Eshooter
• Compatibility: Tokyo Marui standard V2 gearboxes
• Wiring Configuration: Rear wired
• Selector Modes: SAFE, SEMI, BINARY, BURST, AUG, AUTO, SNIPER
• Sniper Delay Options: 0.5 s, 1 s, 2 s, 3 s
• Pre-Cocking Adjustment: 100 levels
• Trigger Sensitivity Sensors: 5 levels
• ROF Control: Adjustable
• Cycle Detection: DSG, HSG, Standard Gear Compatible
• Firmware Update: OTA via Eshooter App
• Active Brake: Adaptive
• Dimensions: 47.4 × 28.7 × 13.5 mm
• Package Includes: 1x Base Plate, 1x Sensor, 1x Power Cord, 1x Top Plate, 1x Magazine Button

Features:

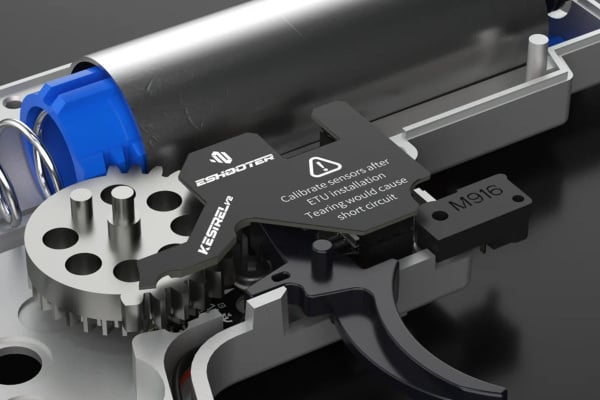

• Rear-wired ETU designed for easy integration into M4-style V2 gearbox platforms
• Wireless app connection for full customization of firing modes, ROF, pre-cocking, and sensitivity
• Pre-cocking with 100 precision levels for ultra-fast trigger response
• Supports both brushed and brushless motors and a wide voltage range for flexible power setups
• Adaptive active brake for smooth cycle stops and reduced gearbox wear
• Smart electronic fuse and locked-rotor protection to prevent damage from overloads or stalls
• Cycle detection compatible with DSG, HSG, and standard gear sets for accurate timing and diagnostics
• Five-level trigger sensitivity sensors adjustable via the app without disassembly
• Multiple selector modes including binary, burst, AUG, and sniper with selectable delay options
• OTA firmware updates keep features current and stability improved over time
• High-temp Teflon wiring and conformal coating for long-term durability in harsh conditions
• Sleep mode and battery protections to extend cell life and prevent over-discharge
• Compact footprint fits cleanly into Tokyo Marui spec V2 gearboxes
• Includes essential mounting hardware and magazine button for full installation

Overview

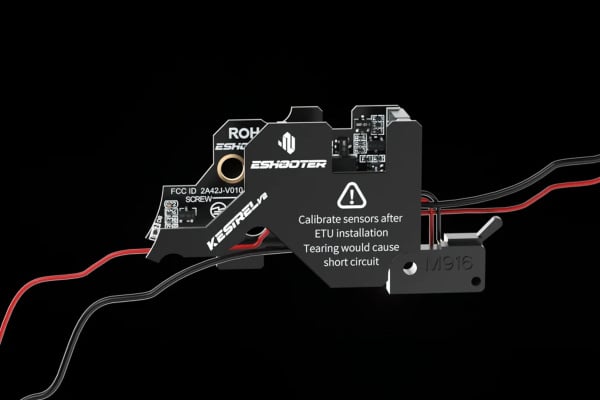

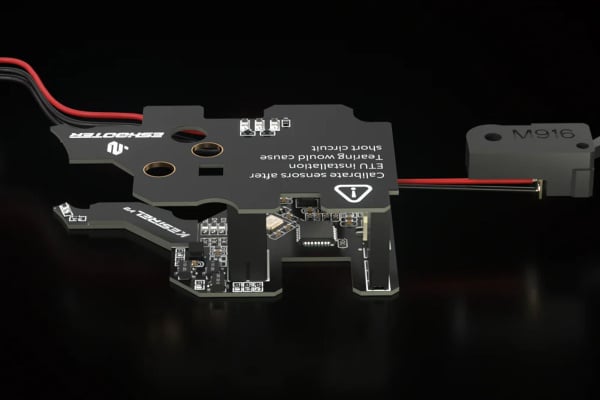

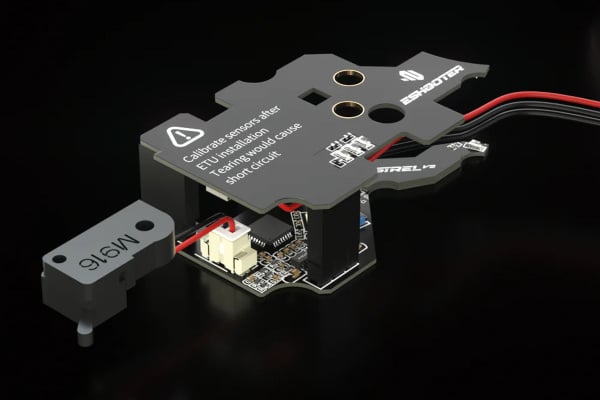

The Eshooter Kestrel V2 is a rear-wired programmable MOSFET/ETU built for Tokyo Marui-style V2 gearboxes — made to give you app-controlled tuning, robust protections, and competition-ready trigger response in a compact package.

Performance & Protection

With support for brushed and brushless motors, a 3.75–17V range, and up to 200A instantaneous tolerance, the Kestrel V2 delivers crisp pre-cocking, adaptive active braking, smart electronic fuse protection, and locked-rotor safeguards to protect your gearbox and battery under heavy use.

Control & Customization

Wirelessly tune firing modes, ROF, pre-cocking, trigger sensitivity, and sniper delays via the Eshooter App — including SAFE, SEMI, BINARY, BURST, AUG, AUTO, and SNIPER modes — plus OTA firmware updates to keep your setup current.
