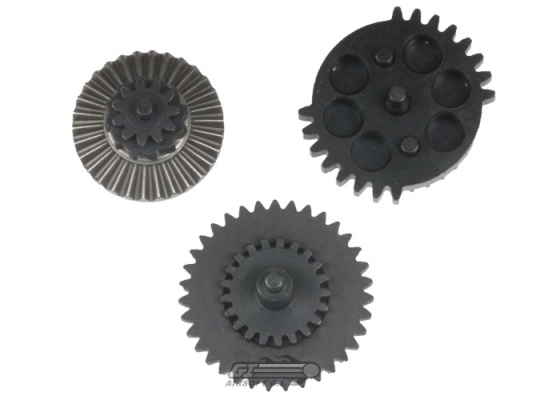

Siegetek Ver. 2/3 Cyclone Revolution 14.09 Ratio Gear Set

[SI04][08119 / GS-R-C / SC GS R C]
$140.00
( 3 Reviews ) ❤ Add to Wishlist
OUT OF STOCK
Orders over $179 qualify for free shipping
Free Shipping for orders over $179 No Coupon needed
New to airsoft? Here are some safety tips for airsoft guns that we recommend following.

Siegetek gears are CNC Machined out of Chromium Molybdenum steel and are the strongest gears available for TM compatible AEGS. Each gear is precisely calculated and accurately produced which provides maximum efficiency and durability over traditionally produced gears. Siegetek gears are incredibly thick to provide higher bearing surface and improves structural durability. Siegetek gears are used in some of the most hardcore builds in airsoft and have been come to known for their quality and durability, install these gears in your build and they will not disappoint.

Siegetek's Cyclone Gear set is an extremely advanced set up and should only be attempted by an expert technician. The Cyclone gear features a set of teeth of either side of the sector gear which allows two shots per gear cycle, essentially doubling your rate of fire. Using a half-cycle cut-off system allows retention of semi-automatic fire which is usually very tricky to pull off with a short stroke style system. The sector clip on this gear system is shaped in such a way to delay the release of the tappet plate to avoid any feeding malfunctions. Siegetek recommends that this setup should only be used with a 363mm inner barrel or shorter due to the reduced air compression that the short stroke system produces.

Specifications:
Manufacturer: Siegetek Concepts
Material: Chromium Molybdenum steel
Ratio: Revolution 14.09
Gearbox compatibility: Version 2 and 3

Features:
CNC machined
Short stroking system
Enlarged sector gear release tooth
Shape-optimized power cut-off cam
Enlarged tappet cam
Shape-optimized anti-reversal gear

Please Note:

  • Professional installation is recommended. Improper use or installation of upgrade parts are 99% of the time the cause of failures of these items.

Specifications
Manufacturer: Siegetek Concepts
Color: Black
Material: Chromium Molybdenum Steel
Package Includes: One (1) Gear Set

see 3 reviews | Write a Review
A. MALONEY | 2011-04-28
Product Information:
Best Gears on the market for highspeed. I'm pushing 55 RPS on these guys.

Pros:
extremely strong
highest ROF possible
Best gears available no matter what version you get.

Cons:
Must be very precisely installed, experience techs only!
B. BRIGHTBILL | 2012-09-03
Product Information:
So far ive put about 60k rounds at 65rps on a M170, theses gears are bullet proff. Once you shim these they are like a monster. Dont worry about the teeth breaking or anything, (i once had a derect jam onto the sector, even then the gear set didnt buckle) Airsoft is ment to be stress free and fun, Siegetek gear sets that are 115 bucks for a unbreakable worry free gear set is well worth it. The arnt overpriced, there just THAT good.

Pros:
-Unbreakable and last for a lifetime so
a warrenty would be a waste of paper
-allow up past a M210 spring
-easy to shim
-smooth cycle
-Flawless design


Cons:
Requires alot of tuning the gearbox for it to cycle perfectly, but is well worth it, One last thing is you cant use some highcaps to feed these.
verified buyer
M. CHADWICK | 2013-01-01
Product Information:
Essential for ultra-high RoF setups. Pair these with a high torque neo motor and you'll have a beast on your hands. Don't worry about the price, you could break a small army of gearsets by other makers before you put a dent in these so they'll pay for themselves as others have said.

Pros:
-Ultra-high rate of fire (50-60 RPS or more)
-High energy efficiency when correctly installed
-Excellent trigger response
-Most durable gears currently available
-Top-notch customer service from the manufacturer, and a plethora of knowledge about installations and potential problems is available online if you know where to look.

Cons:
-Extremely tight tolerances in some gearbox shells. The shell and/or bushings may need to be ground down to allow proper clearance for the gears to operate. I had to grind down the bushings for the bevel gear to install this set in a G&G V2 gearbox for example.
-Requires high-powered spring to maintain acceptable velocity, which can be a pain to install. Get a buddy to hold the gearbox and cylinder while you put the spring in, makes it quick and easy.

Blowback
Will this work with an AEG that has blow back?

3446 days ago
Howard E
0
0

(I have this same question)
Staff Answer:
It should

3444 days ago
0
0
1 answers
1 asked

Compatibility
With this fit in the Apex m4 ris

3478 days ago
Cole C
0
0

(I have this same question)
Staff Answer:
It should be compatible with the proper tuning.

3477 days ago
0
0
1 answers
1 asked
