PolarStar JACK HPA M4/M16 Ver. 2 Conversion Kit

[storefront][20234 / SJV2-M4 / JACK-M4 / 2266400 / PS JACK M4/M16]
$340.00
Write Review ❤ Add to Wishlist
OUT OF STOCK
This item qualifies for free shipping
Free Shipping for orders over $179 No Coupon needed
New to airsoft? Here are some safety tips for airsoft guns that we recommend following.

PolarStar Precision Airsoft Components (PPAC) was formed in January 2009 to fill the need for precision engineered airsoft upgrade parts. PPAC is a division of PolarStar Engineering & Machine (PSE&M), a unique blend of tenured American toolmakers and a full service CAE/CAD/CAM (Computer Aided Engineering, Design, and Manufacturing), special crafts machine shop keeping alive our proud manufacturing heritage of "Made in the USA".

Founded in 1997, PSE&M specializes in servicing the automotive racing industry by designing and engineering systems and components from "art to part." Whether a unique one off prototype up to and including manufacturing large quantities of finished and tested parts and assemblies. Operating under the auspices of the Delaware Association of Professional Engineers, we retain a Professional Engineer (P.E.) on staff to ensure and certify all design and engineering standards are met.

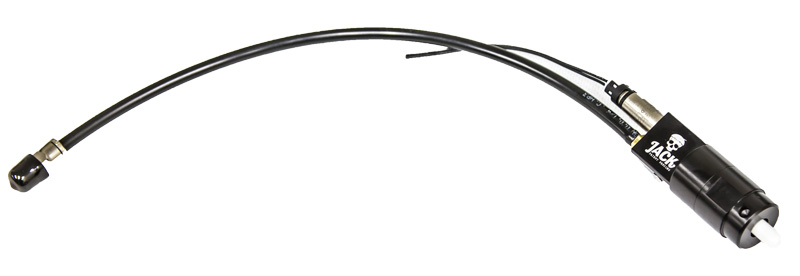

The JACK system was designed to answer the demand for an affordable, high performance HPA (High Pressure Air) conversion for AEG's. The system is a drop-in cylinder replacement that is universally compatible with a wide range of gearbox versions that have center-line nozzles.

Similar to its sister product, the F1, it replaces the original gearbox components with a programmable pneumatic system allowing for higher performance and greater reliability over a gear driven system. Although economically priced, JACK still retains the same performance and quality you have come to expect from PolarStar products.

JACK has only 1 moving part, the nozzle, which acts as its own poppet valve and is piloted by the solenoid. With the exception of the poppet being integral to the nozzle, the valve is similar to the poppet valve used in the previously released Fusion Engine and is what gives JACK its signature muzzle report. The system itself has only 6 parts and can be completely disassembled by hand in a matter of seconds so the system is very reliable and easy to maintain.

Just like all other PolarStar HPA conversions, JACK also allows for easy velocity adjustment. Using a standard M4 as an example, velocity can be adjusted from below 280fps and up to approximately 500fps with a .20g BB. This can be done simply by adjusting input pressure and poppet dwell to fine tune your rifles velocity in increments of just a few FPS at a time. Maximum velocity potential of the system will vary depending upon the barrels length and tightness of the bore. Longer and tighter barrels will yield a higher velocity while shorter or wider barrels will be yield a lower velocity.

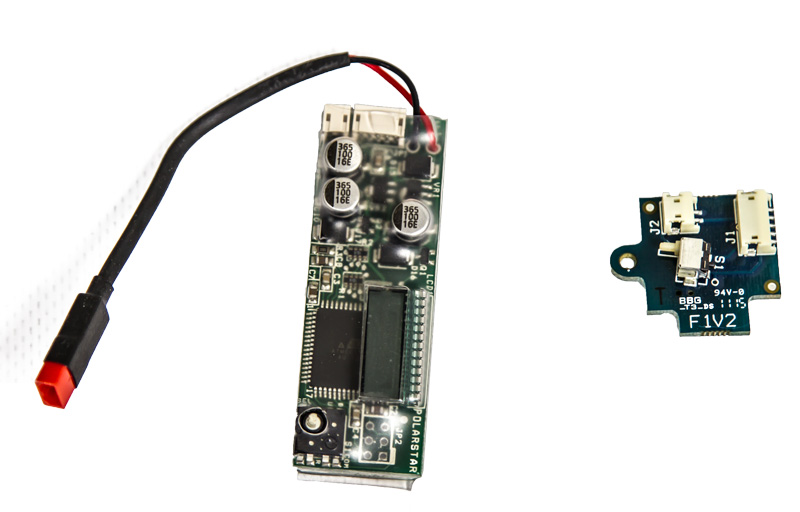

As with all of PolarStar's electro-pneumatic conversion kits, you can quickly change and adjust key functions of JACK via the on-board FCU (Fire Control Unit) which is no bigger than an AEG's MOSFET and can easily fit inside of a rifles battery compartment along with a small Li-po battery. Using the FCU's five position joystick and LCD display you will be able to easily and precisely adjust such functions as the systems cyclic rate, fire modes and poppet dwell on the fly.

Although efficiency was not a critical requirement during development, JACK does boast some highly respectable figures in this category. This is made possible by is compact and intelligently laid out design which minimizes dead volume resulting in better air flow, faster response and less air used per shot. As a result JACK is considerably more air efficient than a bone stock Fusion Engine when operating in the same velocity range. Key Features

Specifications:
Manufacturer: PolarStar Airsoft
Model: JACK
Muzzle Velocity: 280 - 500 FPS, Adjustable
Rate of Fire: 1 - 30+ RPS, Adjustable
Fire Modes: Semi, 2-9rd Burst / Semi, Full Auto / Semi Only
PSI Operating Range: 40 - 130 PSI
FCU Voltage Range: 7-10 VDC
Package Includes: JACK, Internal Switch Board, FCU

Features:

  • Made in the U.S.A.
  • Adjustable Velocity
  • Adjustable Rate of Fire
  • Center Line Nozzle Design
  • Smaller Solenoid
  • Cost Efficiency
  • Universal Cylinder Design is Compatible with Numerous Gearbox Versions
  • Optimized Flow Profile, Firing Point and Flow Path Promotes Superior Shot Consistency and Accuracy

Specifications
Manufacturer: PolarStar
Color: Black
Package Includes: JACK, Internal Switch Board, FCU
No reviews | Write a Review

G&G CM16 R8-L
Will this fit in a G&G CM16 R8-L? I want to start hpa.

2234 days ago
Troy C
0
0

(I have this same question)
Staff Answer:
Yes. This will work in any version 2 gearbox.

2190 days ago
0
0
1 answers
1 asked

MP5
Will this fit with an Elite Force MP5 AEG sportline?

2564 days ago
Julie H
0
0

(I have this same question)
Staff Answer:
It should as long as the gun is a standard V2 GB.

2114 days ago
0
0
1 answers
1 asked

Will this fit..
I have a Lancer Tactical 10 m4 carbine and I would like to know if it will fit in my gun.

2584 days ago
Hunter R
0
0

(I have this same question)
Staff Answer:
Yes, it should fit as it's made to work in any V2 style gearbox.

2099 days ago
0
0
1 answers
1 asked

Will the JACK fit into a KWA 2gx gear box?
I have a KWA KM4 SR10 and I want it to be turned into a HPA DMR. Will the jack fit into this gun properly?

2943 days ago
Parker H
0
0

(I have this same question)
100%

2814 days ago
Matthew M
0
0
I have a KWA KM4 SR10 and I want it to be turned into a HPA DMR. Will the jack fit into this gun properly?

2943 days ago
Parker H
0
0

(I have this same question)
Staff Answer:
Please send an email to [email protected]

2943 days ago
0
0
2 answers
1 asked

Compatibility 0 answers
1 asked

Will this fit on my cqb acr Masada with no other upgrade? 0 answers
1 asked

SCAR-L 0 answers
1 asked

Will it work in 0 answers
1 asked

Gr-25 0 answers
1 asked

Will this fit a Magpul masada SV? 0 answers
1 asked

Will this operate in my KWA SR-10 Milsim edition 0 answers
1 asked

Will This Work with VFC 0 answers
1 asked

will this work
Will this work with a vfc scar l?

3189 days ago
justin p
0
0

(I have this same question)
Staff Answer:
It should work

3188 days ago
0
0
1 answers
1 asked

can you ship it to japan?
how many day it will arrive?

3192 days ago
washington y
0
0

(I have this same question)
Staff Answer:
We do ship to Japan, however, shipping can vary depending on how long it takes to get through customs

3187 days ago
0
0
1 answers
1 asked

Will this work 0 answers
1 asked

Will this work with kwa
Would this work with the kwa cqr series? I understand kwa uses some proprietary parts in their guns (air nozzle(?) hop up) thank you for

3195 days ago
chris n
1
0

(I have this same question)
Sure does!

2814 days ago
Matthew M
0
0
1 answers
1 asked

is the nozzle interchangable with the fusion nozzle 0 answers
1 asked

do you still need..
an airline regulator like the "firebase" regulator and an airtank like the "ninja" HPA tank?

3229 days ago
brandon l
0
0

(I have this same question)
Staff Answer:
Yes.

3171 days ago
0
0
1 answers
1 asked

will this work in a vfc scar h?
will this with the stock air nozzle work in the vfc scar h?

3229 days ago
Tim G
0
0

(I have this same question)
Staff Answer:
Yes. But you will need a different air nozzle.

3171 days ago
0
0
1 answers
1 asked

Additional Items
What else would I need to buy in addition to the Jack in order to field my gun?

3233 days ago
Casey B
0
0

(I have this same question)
Staff Answer:
Air source.

3179 days ago
0
0
1 answers
1 asked

Compadibility
Will this unit work on my UMAREX H&K HK416 CQB (made by VFC) ** 2012 Version and if yes how hard is it to install.

3235 days ago
Gerald B
0
0

(I have this same question)
Staff Answer:
Yes. Must have good knowledge to disassemble the gearbox.

3180 days ago
0
0
1 answers
1 asked

P* Patch
Does the Jack include the Polarstar Patch?

3235 days ago
Christian O
0
0

(I have this same question)
Staff Answer:
Yes

3180 days ago
0
0
1 answers
1 asked

Do you need to have an engine frame to install the jack?
do u need the frame to install the jack

3235 days ago
Michael V
0
0

(I have this same question)
Staff Answer:
Engine Frame? If you are referring to the gearbox shell, this will mount inside most M4 / M16 Gearboxes.

3180 days ago
0
0
1 answers
1 asked

Will this fit
Will this fit in the vfc hk416?

3236 days ago
bailey w
0
0

(I have this same question)
Staff Answer:
Yes it will.

3181 days ago
0
0
1 answers
1 asked

What type of battery connection is that?
I know a 7.4 will work just fine but what type of connector is that on the FCU?

3236 days ago
Robert H
0
0

(I have this same question)
Staff Answer:
JST Connector.

3184 days ago
0
0
1 answers
1 asked
Search Tags: Conversion Upgrade Mech Box HPA Type 2 Single Moving Part HPA High Pressure Air System Internal Upgrade Replacement Part Piece Drop In Kit Polar Star
